Perimeter Fire Containment Systems for Curtain Wall and Façade Protection in High-Rise Buildings

MANYCON TRADING AND CONTRACTING – Qatar is a trusted provider of curtain wall fire barrier installation, façade joint firestop systems, and perimeter wall firestop solutions. As a Civil Defense-approved contractor, we specialize in perimeter fire barrier systems that comply with QCD, UL, ASTM, and NFPA standards—serving high-rise towers and commercial developments in Doha, Lusail, and The Pearl.

curtainwall1

What Is Curtain Wall / Perimeter Firestop?

!

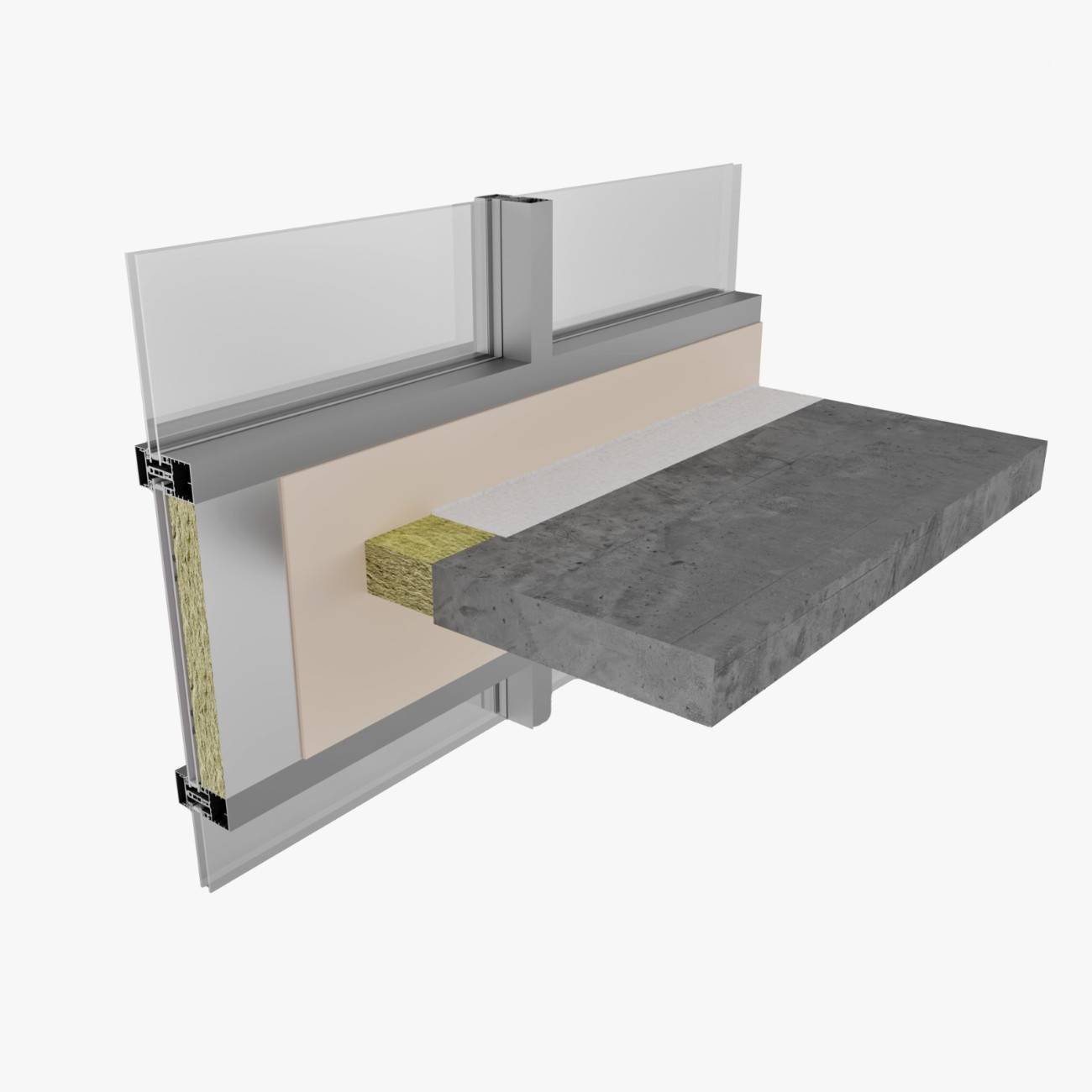

Curtain wall firestop, also known as perimeter curtain wall fire protection service, is the passive fire protection for curtain wall gaps. It involves sealing the void between the edge of the floor slab and the façade or glass curtain wall to prevent vertical fire and smoke spread. Without proper edge of slab fire barrier installation, fire can easily bypass floor compartmentation.

!

Our firestop systems use UL-listed curtain wall firestop systems like mineral wool safing insulation, intumescent firestop for curtain wall gaps, and fireproofing for external wall joints to ensure effective containment and QCD compliance.

Our Perimeter Fire Barrier Solutions Include:

  1. Curtain Wall Perimeter Firestop Installation
    Using fire-rated perimeter joint systems with mineral wool, foil-faced boards, and intumescent coatings to seal curtain wall gaps.
  2. Vision Glass to Slab Interface Sealing
    Installation of façade perimeter fire sealing and curtain wall joint fire barrier systems at the vision glass-slab junction.
  3. Backpan Fire Barrier Systems
    Fire barrier for curtain wall perimeter, installed behind ACP or aluminum spandrel panels.
  4. Curtain Wall Retrofit Firestop
    Upgrading old façade firestop systems or installing approved perimeter firestop systems on existing buildings.
  5. Spandrel & Mullion Fire Protection
    Curtain wall spandrel firestop systems and mullion fireproofing using intumescent firestop sprays.

Technical Details of Curtain Wall Firestop Systems

Firestop Materials Used:

  • Mineral Wool Safing Insulation: Fireproofing for façade perimeter joints
  • Aluminum Foil Tape & Fire Wraps: Secure fire barriers between curtain wall and floor slab
  • Intumescent Coatings: Fire sealing for curtain wall gaps
  • Compression Seal Systems: Firestop for floor to wall joints in high-rise buildings

Firestop Materials Used:

  • UL 2079 / ASTM E2307 (Perimeter Fire Barrier Systems)
  • BS EN 1364-4 for curtain wall fire resistance
  • QCD-compliant firestop for aluminum curtain walls
  • NFPA 285 compliance for façade systems

Installation Procedure:

  • Mechanical fixing of mineral wool and curtain wall head of wall firestop

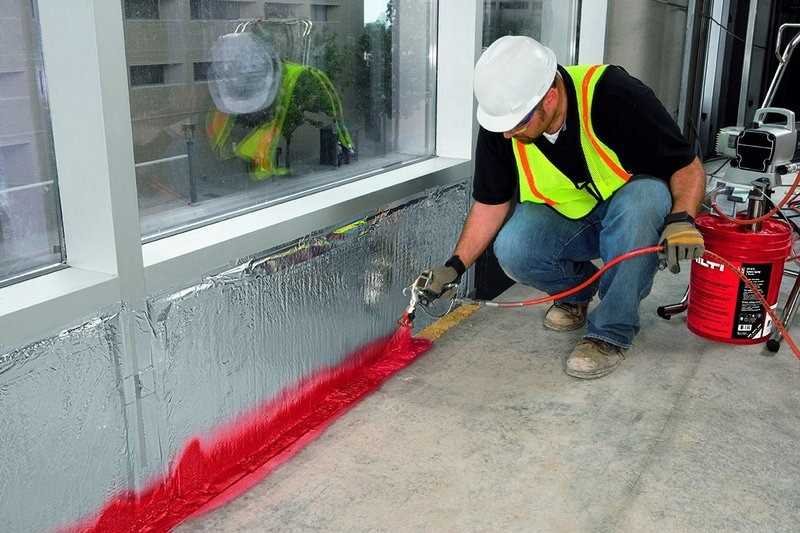

  • Application of intumescent mastic or spray firestop system for façade perimeter
  • Adherence to tested UL assemblies (e.g., UL CW-D-1014, CW-D-1025)
  • QCD documentation for firestop inspection for façade joints

Applications of Curtain Wall Firestop:

  • High-rise towers with curtain wall systems
  • Commercial complexes and office buildings
  • Airports, shopping malls & transport hubs
  • Government buildings and hotels
  • Mixed-use developments with glass façades

Why Choose MANYCON Qatar for Firestop Systems?

Curtain Wall Firestop Contractor with UL-listed & QCD-approved systems

Firestop solutions for glass façade and external wall joints

Experienced façade joint fire sealing specialists and engineers

Curtain wall fireproofing with full QA/QC and documentation

Seamless coordination with ACP cladding, GRP lining, and façade works
