ShapeFirestop & Passive Fire Protection Services

MANYCON TRADING AND CONTRACTING

!

Certified Passive Fire Protection for Openings & Fire Dampers Across Qatar

MANYCON TRADING AND CONTRACTING – Qatar delivers expert fire and smoke sealing solutions for doors, windows, shutters, and mechanical dampers, ensuring compliance with Qatar Civil Defense (QCD) and international fire safety codes. We provide full installation, inspection, and sealing of passive fire protection systems to contain fire and smoke spread across critical building openings. Our solutions are ideal for commercial towers, residential buildings, healthcare facilities, hotels, and industrial complexes across Doha, Lusail, Wakrah, and Ras Laffan.

ChatGPT Image Apr 22 2025 06_27_33 PM 1
DALLE 1 1
!

What is Fire/Smoke Stop for Doors, Windows & Dampers?

This system includes the use of intumescent seals, fire-resistant strips, smoke gasketing, and fire collars to seal gaps around door frames, window frames, rolling shutters, and fire/smoke dampers. These products expand under heat, effectively stopping fire, smoke, and toxic gas migration between compartments. Properly installed, they maintain the integrity and insulation rating of fire-rated barriers for up to 2 or 3 hours, ensuring occupant safety and meeting QCD compliance.

Our Fire/Smoke Stop Services in Qatar Include:

Fire & Smoke Sealing for Fire-Rated Doors
Application of intumescent seals, smoke brushes, and fire-rated silicone to the door perimeters and hardware gaps for complete compartmentalization.

Window Frame Fire Sealing
Fire/smoke stop application around metal or wooden window frames, curtain wall interfaces, and glazing junctions using tested fire caulks and backing rods.

Rolling Shutter & Curtain Firestop
Sealing gaps around rolling shutters, fire curtains, and horizontal sliding fire barriers in malls and commercial buildings.

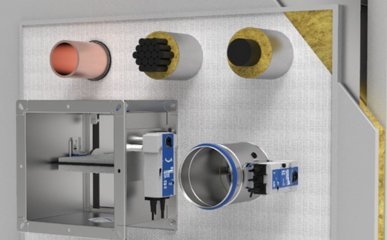

Fire/Smoke Damper Sealing & Penetration Firestop
We specialize in :

  • Fire damper penetration – Fire Stopping, fire damper penetration sealing, fire damper firestop, and fire damper wall penetration
  • Fire rated duct penetration, fire rated ductwork and damper fire sealing, fire damper duct sealing, and ductwork penetration firestop system
  • Firestop for mechanical wall penetrations, mechanical penetration firestop for dampers, penetration firestop for HVAC systems, and firestop solution for air damper wall penetration
  • Intumescent duct firestop system, intumescent firestop for fire damper, firestop wrap for damper penetration, firestop collars for damper ducts, and firestop putty for HVAC ducts
  • Fireproofing for HVAC and dampers, duct damper fireproof sealing, fire protection for HVAC dampers, and approved firestop system for dampers
  • Fire barrier around fire damper, passive fire protection for duct penetrations, fire sealing for duct openings, and fire sealing around fire damper
  • Firestop inspection for fire damper penetration, certified fire damper penetration sealing, and UL listed fire damper firestop
  • Full service by a fire damper firestop contractor, MEP firestop service for dampers, contractor for fire damper penetration fireproofing, and mechanical services firestop installation

Inspection & Certification of Openings
Manycon conducts site inspections, sealant application, photo documentation, and Civil Defense documentation to certify your openings as compliant.

Technical Details of Fire/Smoke Stop Systems

  • Firestop Materials & Accessories Used:

    Intumescent Fire Strips · Smoke & Draft Seals · Fire-Rated Silicone & Acrylic Sealants · Fire Collars & Wraps for Dampers · Fire-Rated Brushes & Edge Seals · Gaskets and Expanding Tapes

  • Applicable Testing & Standards:

    BS 476 Part 22 & 31.1 – Fire Resistance for Doors & Smoke Control · UL 1784 – Air Leakage Testing for Smoke Dampers · EN 1634-3 / EN 1366-2 – Smoke Control Systems · ASTM E84, UL 1479, and QCD Fire Safety Requirements

  • Installation Guidelines:

    – All frames cleaned and primed before sealant application – Sealant applied continuously to meet specified depth and width – Use of fire-rated gaskets for active leafs and frame joints – Fire/smoke dampers tagged and tested with manual/auto close checks – Documentation includes penetration tagging, UL system references, and photos

  • Applications Across Sectors:

    Hotel Fire Doors & Guest Room Corridors · Hospital Smoke Isolation Doors & OT Zones · Office Tower Fire Compartments · Malls – Shuttered Shops and Fire Curtains · Educational Campuses & Labs · Utility Buildings & Basement Ventilation Areas

Why Manycon Qatar for Fire/Smoke Stop Installation?

Related Images

Quick Contact

Book a Free Inspection of Fire/Smoke Stop Systems Contact us for firestop solutions for expansion joints, wall to ceiling gaps, and all passive protection needs.

Ensure every opening, frame, and damper in your building complies with fire safety codes. Contact Manycon to schedule a free inspection or proposal today.

Office No. 29, 2nd Floor, Building 50, Zone 55, Doha – Qatar

Manycon Qatar – The trusted name in door, window & damper sealing for certified fire protection in Qatar.

Protect Lives & Property with Certified Opening Fire/Smoke Stop Solutions – Talk to Manycon Today.
